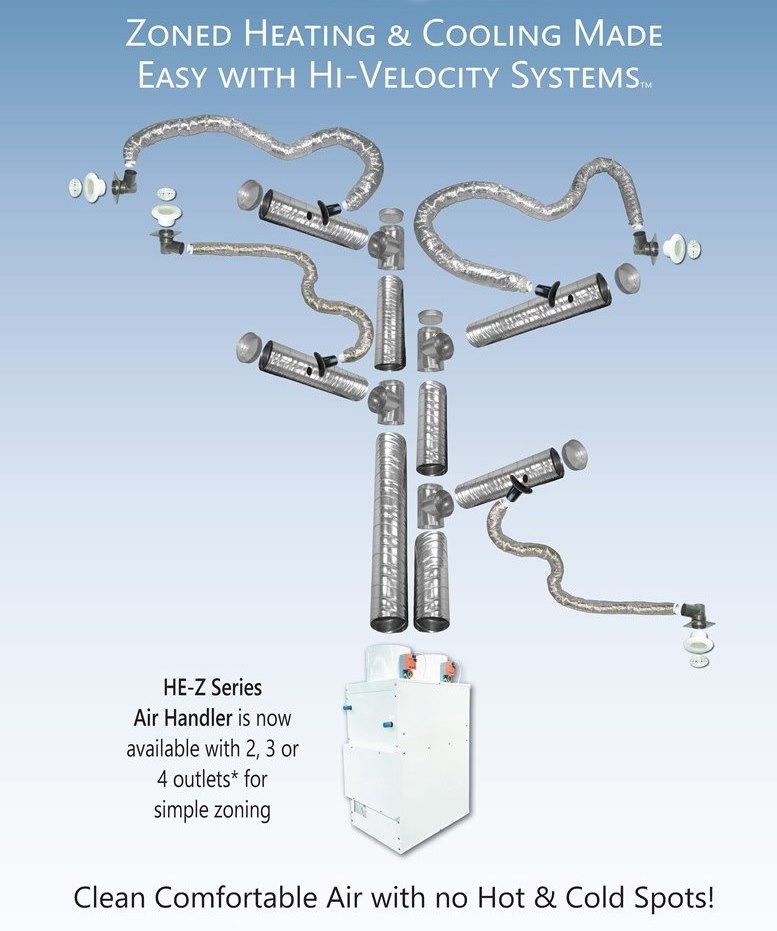

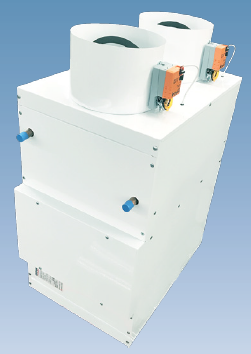

The Zoning Add-On package includes pre-wired zone panel and 2, 3 or 4 collars, each w/ power open/close dampers and actuators pre-installed on our HE-Z air handlers.  As stated by NRCan*, zoning can reduce energy consumption up to 50% with increased comfort.
While some households are satisfied with a single zoned HVAC system, others struggle to find a way to balance out the uneven temperatures in their homes. The HE-Z Zoning air handler can solve this problem by allowing the homeowner to customize different areas of their home to a comfortable temperature that suits their needs.

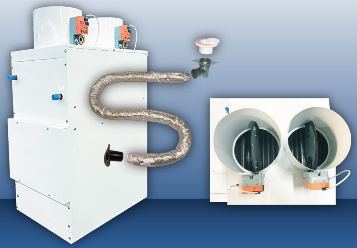

  • Comes complete with Pre-Installed Zone Panel, Power Open/Close Dampers and Actuators
  • Save time and money on field installation and materials
  • Compatible with standard third party thermostats and smart thermostats
  • HE-Z variable speed controls eliminate dump zones and minimize power draws
  • Easy maintenance with all components in one accessible location
  • Eliminate unsightly wiring and external controls


 2-Collar Air Handler                  3-Collar Air Handler                 4-Collar Air Handler

Zoning Add-On Information
  HE-Z Zoning Brochure
  HE-Z Zoning Manual


HE-Z Zoning Specifications

HE-Z-Zoning Specifications

HE-Z-50/51

HE-Z-70/71

HE-Z-100/101

Coil Type

6 Row/10 FPI

6 Row/10 FPI

6 Row/10 FPI

Supply Maximum Length(2)

70’ (21.3m)

80’ (24.4m)

100’ (30.5m)

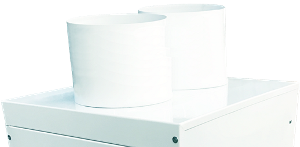

Supply Air Size (2 Supply Collars)

2 x 8” round (203mm)

2 x 8” round (203mm)

2 x 10” round (254mm)

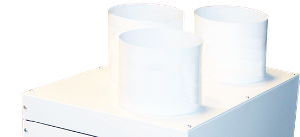

Supply Air Size (3 Supply Collars)

2 x 8” round (203mm)
1 x 6” round (152mm)

3 x 8” round (203mm)

2 x 8” round (203mm)

1 x 10” round (254mm)

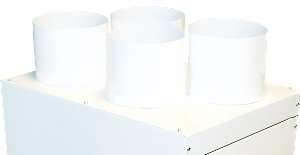

Supply Air Size (4 Supply Collars)

4 x 6” round (152mm)

4 x 6” round (152mm)

4 x 8” round (203mm)

Minimum Outlets (total per Air Handler)
Maximum Outlets (total per Air Handler)

6 (HE) 12 (2")
13 (HE) 26 (2")

10 (HE) 20 (2”)
18 (HE) 36 (2”)

14 (HE) 28 (2”)
30 (HE) 60 (2”)
NOTE:  For full specs and design criteria, refer to HE-Z Design/Installation Manuals for more information.
